Canon devices are supported with basic counters, advanced counters and supplies levels.

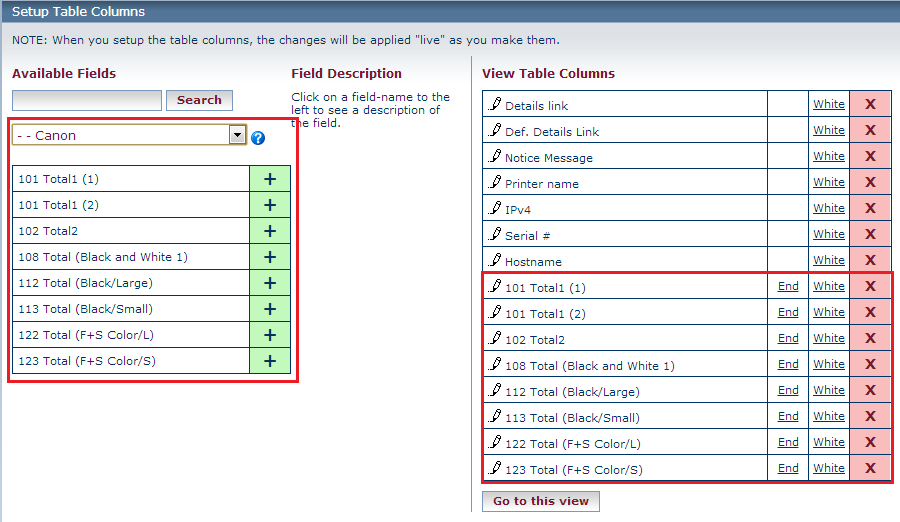

Following advanced counters are mapped and can be used for custom views / reports.

• 101 - Total 1
• 101 - Total 2
• 102 - Total 2
• 108 - Total (Black 1)
• 112 - Total Black Large
• 122 - Total (F+S Color/L)
• 123 - Total (F+S Color/S)

How counters are calculated:

• 105 + 108 = 101 Total 1
• 106 + 109 = 102 Total 2

The counters show a number 1 and 2. These numbers are described below:

1 = single click count on any size paper

2 = double click count on paper sizes LTR(R), LEGAL, 11 X 17 and 12 X 18 only.

The number 1 is single click count for any paper size and the number 2 is for double click count on paper size

LTR(R), LEGAL, 11 X 17, 12 X 18 sizes

It is not possible get information from counter 105, 106 and 109 via SNMP in a Canon device so they can not be displayed.

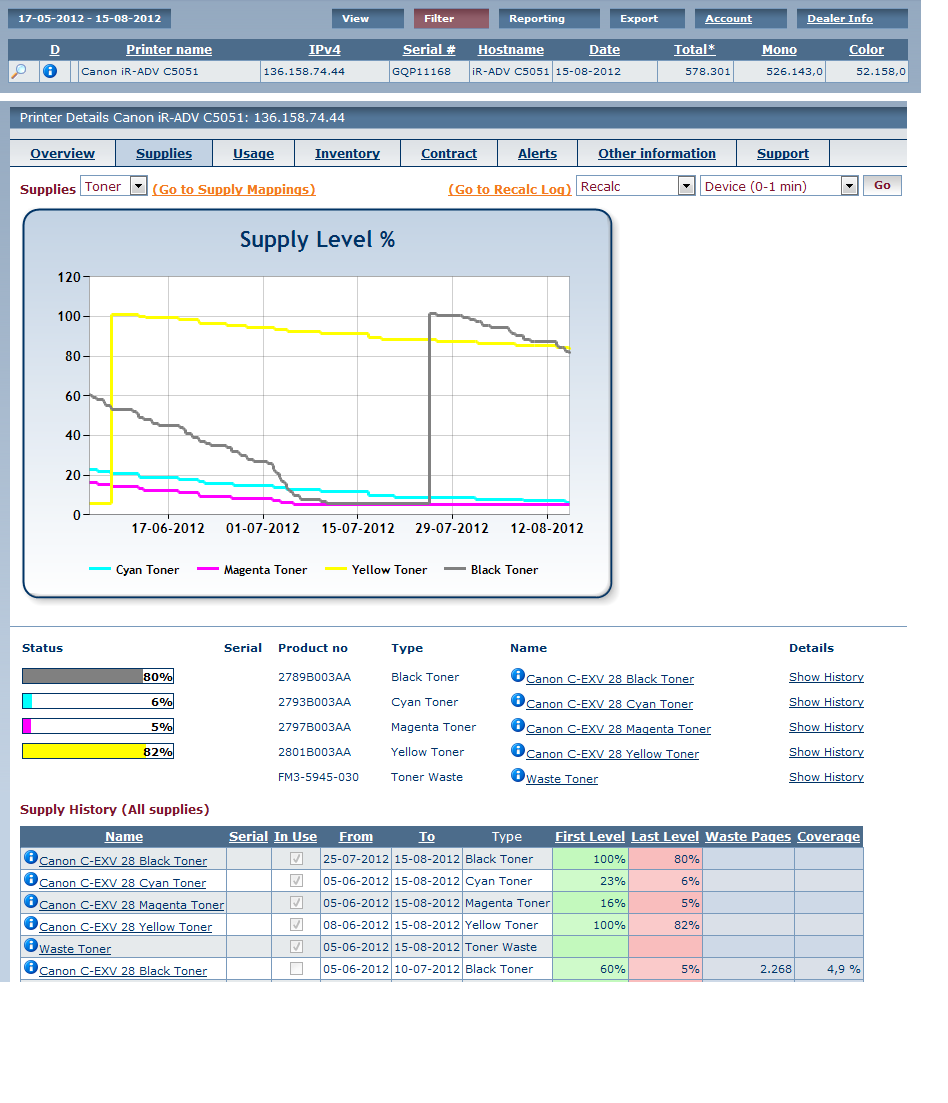

Please see examles below.
