** Discontinued ** How to use HP SDS BlackBox

1-3-2021: ** Discontinued ** by HP


The HP SDS 2.0 feature called BlackBox is used to help technicians repair printers that have broken down and are not working anymore - giving them the last known errors experienced at the device. Helping the technician know exactly what the repair needs are.

What is required:

  • Device to have been seen in JetAdvice and HP SDS
  • Android mobile device
  • Android application "HP SDS" (available on the Google Play store)
  • OTG USB adapter

Configuring the HP SDS mobile app:

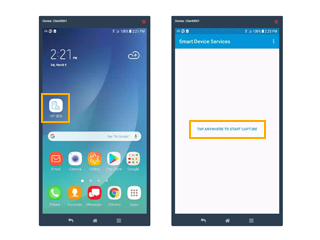

  1. Open the application
  2. Open the General Settings
  3. Change Callback URL to
    https://app.jetadvice.com/Actions/HPSDSActions.aspx?ActionID=2&Token={ID}
  4. Set JAM server instance to
    https://jamanagement.eu.api.hp.com/

How to use HP SDS app with down Printer:

  1. Make sure the printer is at least plugged in
  2. Connect OTG USB cable to the printer's daughterboard
  3. Launch the Android app
  4. Start collection

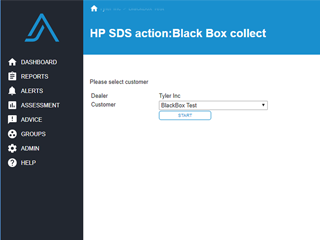

  5. Log in to JetAdvice when prompted
    - Due to the nature of the smaller screen of a mobile device, you may copy/send the URL to use on a PC or laptop.

     - Select the Dealer account (if needed)
     - Select the Customer account where the device is in JetAdvice
    - Press Start in the JetAdvice portal
  6. HP SDS BlackBox Collection will take place

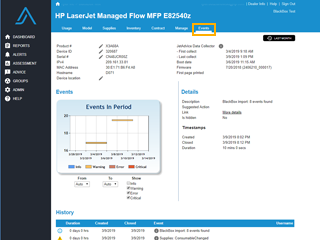

  7. Device's Events page will launch in JetAdvice

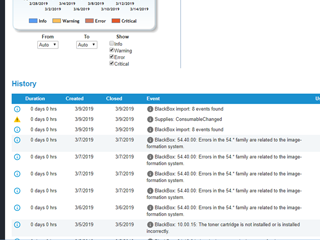

  8. You will see a new Event called "BlackBox Import" (with a number of events)
    - if no events are listed under Event history, then they have already been imported
    (No duplicate events will be present)

Supported devices:

  • HP Color LaserJet
    HP Color LaserJet Managed MFP E77820 series
    HP Color LaserJet Managed MFP E77830 series
    HP Color LaserJet Managed MFP E87640 series
    HP Color LaserJet Managed MFP E87650 series
    HP Color LaserJet Managed MFP E87660 series
  • HP LaserJet
    HP LaserJet Managed MFP E72520 series
    HP LaserJet Managed MFP E72530 series
    HP LaserJet Managed MFP E72540 series
    HP LaserJet Managed MFP E82540 series
    HP LaserJet Managed MFP E82550 series
    HP LaserJet Managed MFP E82560 series
  • HP PageWide
    HP PageWide Managed Color MFP E77650 Printer series
    HP PageWide Managed Color MFP E77660 Printer series
    HP PageWide Managed Color E75160 Printer series
    HP PageWide Managed Color MFP P77940 Printer series
    HP PageWide Managed Color MFP P77950 Printer series
    HP PageWide Managed Color MFP P77960 Printer series
    HP PageWide Managed Color MFP P75250 Printer series
